DVP-SV2 Series
+
DVP-SV2 Series
Delta’s advanced PLC module offers high-speed and high-precision motion control with 4x200kHz pulse outputs, support for linear/arc interpolation, and enhanced program protection. Ideal for servo positioning, cutting machines, cranes, and automation in industries like semiconductors, textiles, and optoelectronics.
Specifications
- High-speed pulse output: 4 sets of 200kHz pulse outputs
- Supports up to 4 hardware 200kHz high-speed counters
- Enhanced motion control instructions for high-speed, high-precision positioning
- Supports both linear and arc interpolation motion control
- Up to 16 external interrupt pointers for real-time responsiveness
- Applications
- 2-axis servo positioning control
- Material cutting machines (high-speed servo control)
- Main hoists in cranes
- Material clamping using servo control
- Optoelectronics industry equipment
- Semiconductor industry processes
- Textile industry automation
- Energy-saving operations and building automation
DVP-SX2 Series
+
DVP-SX2 Series
To fulfill the market demand for versatile, value-added programmable logic controllers, Delta’s third generation DVP PLCs EX3 series employs the AS series PLC’s 32-bit high-speed processor with a user-friendly programming interface, built-in analog I/O, and multiple communication ports. Compared with the previous generation, the EX3 series upgrades execution performance, expands program capacity, and enhances interoperability.
Specifications
- MPU Points: 20 (8 Digital Inputs / 6 Digital Outputs, 4 Analog Inputs / 2 Analog Outputs)
- Maximum I/O Points: 494 (14 built-in + 480 expandable)
- Program Capacity: 16k steps
- Built-in RS-232, RS-485 & USB
- Supports ASCII/RTU protocol
- Operates as Master or Slave
- 2 points (Y0, Y2) at 100kHz
- 2 points (Y1, Y3) at 10kHz
- Built-in High-Speed Counters
- Built-in Analog I/O for precise signal monitoring and control
- PID temperature and humidity control
- 2-axis AC motor drive for constant speed control
- Temperature control using analog signal monitoring
- Factory-wide monitoring and control using PLC EASY LINK

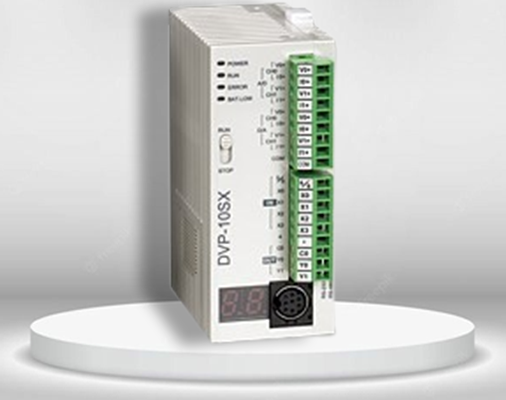

DVP-SX Series
+
DVP-SX Series
The slim and compact SX series supports digital input/output and is built in with multiple analog I/O channels.
Specifications
- MPU Points: 10 (4 Digital Inputs / 2 Digital Outputs, 2 Analog Inputs / 2 Analog Outputs)
- Maximum I/O Points: 230
- Program Capacity: 8K Steps
- Built-in RS-232 and RS-485
- Supports MODBUS ASCII / RTU protocols
- Built-in High-Speed Counter
- Integrated Analog I/O Functions
- High-Speed Pulse Output
- Y0: Up to 50kHz
- Y1: Up to 10kHz

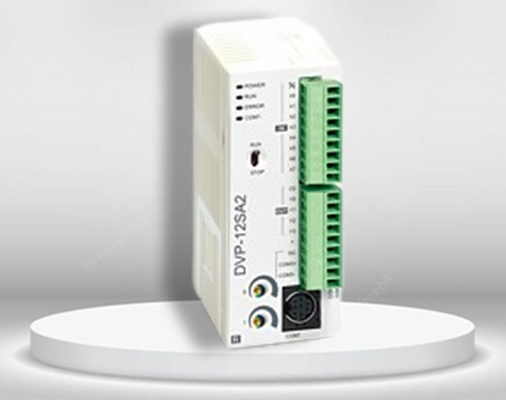

DVP-SA2 Series
+
DVP-SA2 Series
The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions. It is extendable with DVP-S series left-side and right-side extension modules.
Specifications
- MPU Points: 12 (8 Digital Inputs + 4 Digital Outputs)
- Maximum I/O Points: 492 (12 built-in + 480 expandable)
- Program Capacity: 16k Steps
- Printing machines
- Dyeing machines
- Container filling machines (for prescriptions)
- Workstation monitoring in production lines (via PLC EASY LINK)

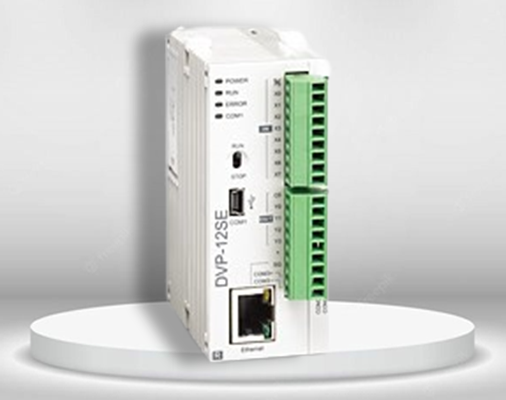

DVP-SE Series
+
DVP-SE Series
The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions. It is extendable with DVP-S series left-side and right-side extension modules.
Specifications
- Provides 8 digital inputs and 4 digital outputs
- Built-in mini USB, Ethernet, and 2 RS-485 ports
- Built-in IP Filter for enhanced security against malware and network threats
- Maintenance-free, no battery required (Real-time clock operates up to 15 days after power off)
- Supports DVP-S series left-side and right-side modules
- Remote device monitoring
- Production line monitoring
- Building automation
- Printing machines
- Container fillers (recipe application)
- Program Capacity: 16k steps
- Data Register: 12k words
- Execution Speed: LD: 0.64μs, MOV: 2μs
- Built-in Ethernet: Supports MODBUS TCP and Ethernet/IP

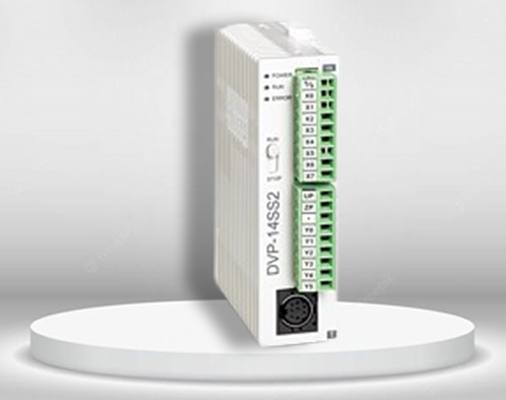

DVP-SS2 Series
+
DVP-SS2 Series
The 2nd generation DVP-SS2 series slim type PLC keeps the basic sequential control functions from the DVP-SS series PLC but with faster execution speed and enhanced real-time monitoring capability.
Specifications
- MPU Points: 14 (8 Digital Inputs + 6 Digital Outputs)
- Max. I/O Points: 494 (14 + 480 expandable)
- Program Capacity: 8k steps
- COM Ports: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU; supports Master/Slave mode
- High-Speed Pulse Output: 4 points (Y0 ~ Y3) with up to 10kHz independent pulse output
- PID Auto-Tuning: Supports automatic PID temperature tuning with auto-saving of parameters
- Built-in High-Speed Counters
- Spinning machines
- Conveyor belts (rotation speed control)
- Winding machines (tension control)

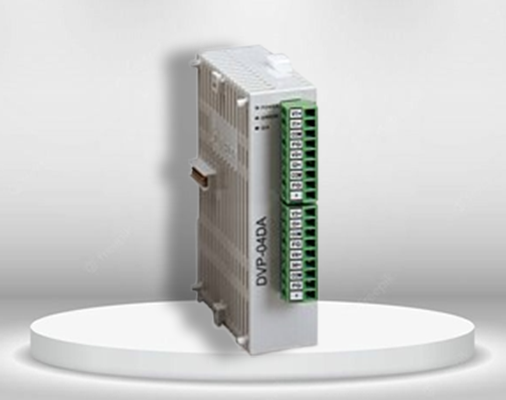

DVP-Slim Expansion Module
+
DVP-Slim Expansion Module
The 2nd generation DVP-SS2 series slim type PLC keeps the basic sequential control functions from the DVP-SS series PLC but with faster execution speed and enhanced real-time monitoring capability.
Specifications
- Digital Modules: 8, 16, 32, 64 I/O
- Analog Modules: 2/4/6 channel inputs (14-bit), outputs (12-bit)
- Load Cell Modules: Dual-channel, 24-bit resolution, 2.5ms response rate
- Conversion time: 200ms/channel
- Overall accuracy: ±0.6%
- Resolution: 16-bit
- RTD inputs: Pt100, Pt1000, Ni100, Ni1000, LG-Ni1000, Cu100, Cu50
- Thermocouple inputs: J, K, R, S, T type
- Digital modules: Output/Input/Mixed types
- Analog modules: Output/Input/Mixed types
- Temperature measurement/control modules
- High-precision load cell modules
- Advanced network modules for flexible integration
- Remote I/O communication modules for distributed control systems
- Remote device monitoring
- Production line monitoring
- Building automation
- Printing machine
- Container filler (recipe application)
