Compact Modular Mid Range Plc

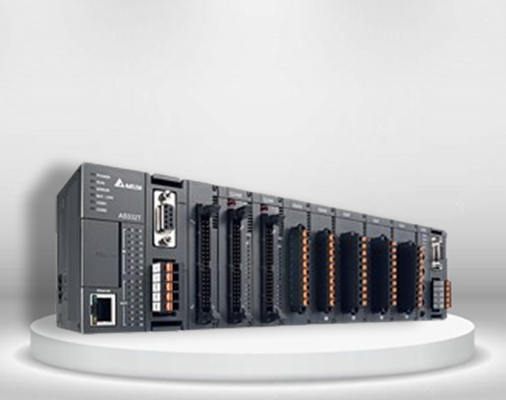

AS Series Standard CPU

The Delta Compact Modular Mid-range PLC AS Series is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta's self-developed 32-bit SoC CPUs for enhanced execution speed (40 k steps/ms) and supports up to 32 extension modules or up to 1,024 inputs/outputs. The AS series provides accurate positioning control for up to 8 axes via CANopen motion network and max. 6 axes via pulse control (200 kHz). It is widely used in diverse automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines.

Specifications

Up to 8-axis motion control via CANopen
6-axis 200 kHz pulse control
Robust non-backplane design for reliable performance
Patented DIN rail clips enable easy vertical module installation and replacement
Programming
Hardware configuration
Network communication
System diagnostics
Positioning planning
Applications
Electronics manufacturing
Labeling machines
Food packaging machines
Textile machines
Specifications
CPU: New 32-bit SoC
Max. I/O points: 1,024
AS300 series: 128k steps
AS200 series: 64k steps
Data registers: 60k words
Max. extension modules: 32
Basic instruction (LD): 25 ns
Application instruction (MOV): 0.15 Î¼s
DIO modules

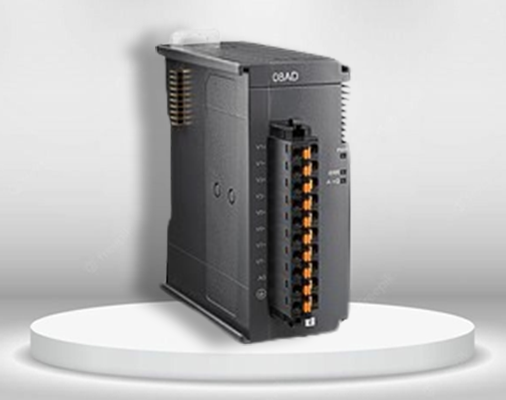

AIO modules
Temperature modules
Load cell module
Function cards
