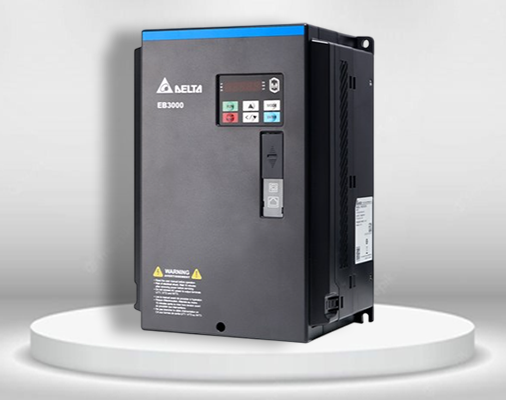

EB3000 Series

The Delta Elevator Drive EB3000 Series is safe and compliant for a comfortable passenger experience. It features a book-type-design in a compact size, which makes it easy to install in machine-room (MR) and machine-roomless (MRL) lifts of new projects and retrofits. As Delta’s new generation advanced elevator drive, the EB3000 Series operates without motor contactors, which reduces installation time and minimizes operating noise.

Specifications

• Outstanding Drive Performance:
• Overload capacity up to 150% for 60 seconds and 200% for 3 seconds.
• Supports IM/PM motors with optional PG cards for high-precision speed and position control.
• Supports VF, SVC, FOCPG, and FOCPM control modes.
• Built-in STO (SIL3) for safety.
• Integrated brake transistor.
• Supports CANlift CiA 417 and Modbus-DCP 3/4 communication.
• Optional models available with built-in EMI filter.
• Flexible UPS configuration support.
• EnDat 2.1/01/02: Heidenhain ECN413, ECN1313
• EnDat 2.2/01/21/02/22: Heidenhain ECN113, ENC1325, ENC425, ECN125
• BiSS-C: WDGF 58R
• SSI: SMARS64
• SIN/COS: Heidenhain ERN1387
• SICK HIPERFACE: SRS50, SRS60
• Bluetooth connectivity for remote control via app.
• Direct landing mode reduces creeping and travel time.
• S-curve speed control ensures soft start and stop with gentle acceleration changes.
• Smooth start-up without load sensor.
• Low noise thanks to zero contactor switching.

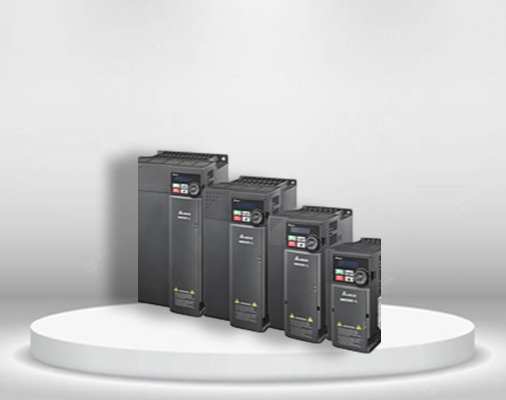

MH300-L

Delta‘s MH300-L is a compact drive for elevators that features several elevator specific functions, such as open loop IM motor control and EPS/ARD. Other built-in functions include EMC filter, brake chopper, I/O extension slot, USB port and 5k steps PLC capacity. With drive size reduced up to 40%, the MH300-L series is compact, easy to set up and wire, and efficient and stable.

Specifications

• Power rating: 2.2kW ~ 15kW
• Supports asynchronous motor with open loop control
• Compact design and user-friendly operation
• Equipped with EPS/ARD and sequence control functions for elevator applications
• Built-in 16-segment LCD digital keypad for easy monitoring and configuration
• Built-in USB connection port for fast connectivity
• Built-in EMC filter to reduce electromagnetic interference
• Built-in brake chopper for enhanced braking performance
• Includes 7 digital inputs (expandable to 10) and 1 relay output (expandable to 3)
• Integrated Safe Torque Off (STO) function, certified to SIL2 level

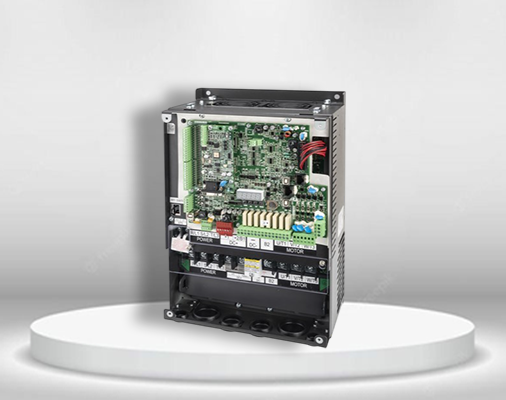

IED-S Series

The IED-S Series is an all-in-one elevator drive and control solution featuring Delta’s advanced vector control for precise IM & PM motor control. With built-in elevator control and compact design, it ensures easy installation, space-saving, and smooth, safe operation. Compliant with UL/CE standards, it supports various encoders and enables energy savings when paired with AFE2000 or REG2000 units.

Specifications

• Field oriented vector control for accurate elevator operation control
• Overload capability: 150% for 60 seconds; 180% for 10 seconds
• Emergency power supply (EPS) mode supported
• Group control of up to 8 elevators without additional control cards, supporting up to 63 floors
• Direct Landing provides a comfortable ride with higher efficiency
• Built-in brake module for all models up to 30 kW
• Built-in Modbus/CAN bus communication interface for seamless integration

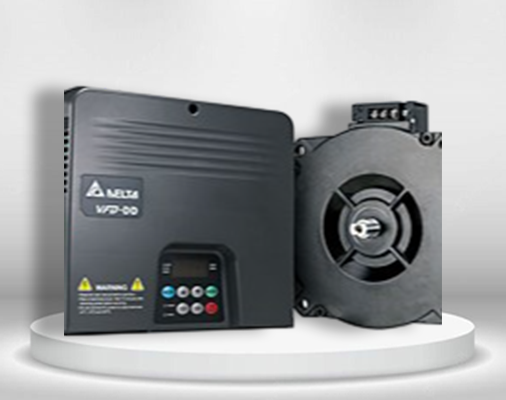

VFD-DD Series

The Delta DD Series elevator door control drive is an intelligent, modular solution designed for easy installation, safe operation, and quick control with its built-in digital keypad. It offers four door control modes, including distance, speed, and multi-step speed control, ensuring smooth and reliable door movement. Ideal for comprehensive elevator door management.

Specifications

• Automatic door width detection and recording in related elevator parameters
• Smooth door re-open curve reduces vibration
• DEMO mode available for testing and demonstration
• PM motor compatibility: A, B, Z, -Z and Delta’s ECMD-B9160GMS series PM motor
• Encoder support: Open collector and voltage output encoder (5~12VDC) for induction motors
• Blockage detection: Detects door blockage and re-opens door using current detection even if hardware safety fails
• Precise torque detection: Maintains door open/close position; if door operation time exceeds warning, forces door open

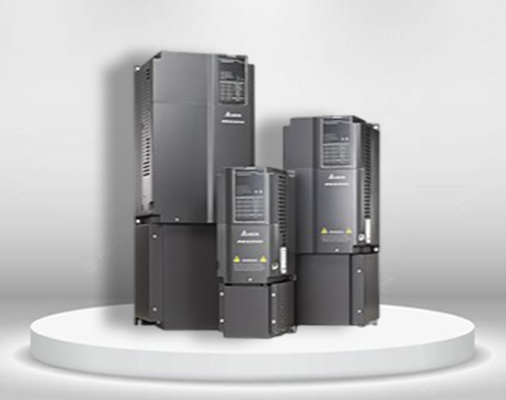

REG2000 Series

A traditional drive system used for inertia load work generally performs rapid deceleration, braking and positioning. When its motor is in generator mode it produces large amounts of regenerative energy that must be consumed to maintain a stable DC bus voltage and safe operation. The traditional method to solve the regenerative energy problem is to install a brake resistor. While it is easy to install and is low cost, it takes up a large amount of space and requires installing additional devices to dissipate the heat. This method provides limited efficiency and wastes the regenerative energy. Delta's REG2000 series is capable of collecting and converting your system's regenerative energy into reusable electricity for the ultimate in energy savings. The installation process is as simple as installing a brake resistor, but with only half the size and better efficiency. The REG2000 is your best green energy solution for power regeneration.

Specifications

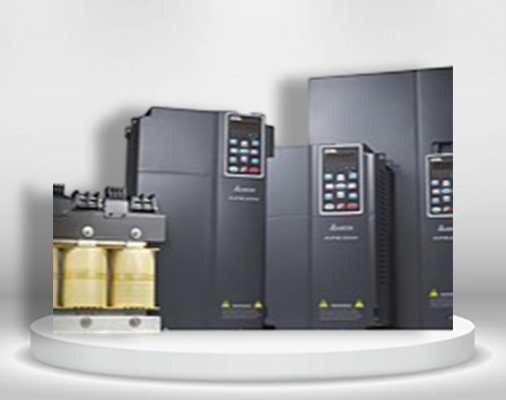

AFE2000 Series

Delta’s AFE2000 Active Front End is a smart, controllable rectifier that enables bidirectional power flow, converting excess energy into reusable electricity to lower power costs. Using PWM modulation, it produces a pure sine wave current, improves the power factor up to 1, and keeps harmonic distortion (THD) below 5%—eliminating the need for extra harmonic filters.

Specifications

• Large-inertia load applications: roving machines, horizontal spiral centrifuges, drilling machines
• 4-quadrant load applications: cranes, cargo elevators, passenger elevators, oil production machines
• Quick brake applications: machine tools, high-speed spindles, bag making machines
• Long-term feedback energy applications: wind power systems and water power systems
• DC power supply applications: logistics and storage systems, wind power systems, LED lighting systems
• Provides excellent power quality for communication transmission systems of Power Line products
• Overhead Traveling Crane
• Elevator

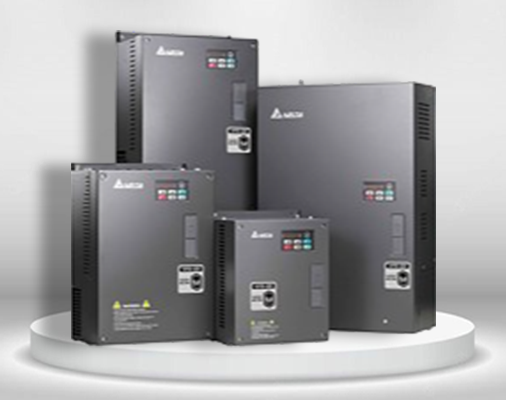

VFD-ED Series

Delta's VFD-ED series AC motor drive designed for elevators are based on years' of experiences in designing AC motor drives, and the experience accumulated since the first Delta elevator AC motor drive VL series launched in 2007. The VFD-ED Series Not only keep safety as first priority but also enhances operation efficiency and riding comfort.

Specifications

• Power rating from 2.2 kW to 75 kW
• Supports both asynchronous and synchronous motors
• Output frequency up to 0 ~ 299 Hz
• 8 programmable digital inputs / 6 programmable outputs
• Supports various encoders (ABZ, ABZ+UVW, SIN/COS, SIN/COS+Endat2.1)
• Supports single output contactor operation (SIL2)
• Built-in CAN/Modbus communication interface
• Built-in 7-segment digit keypad, optional LCD keypad available
• Auto-tuning with the load attached
• Overload capacity up to 200%
• Supports 1-phase 230VAC Uninterrupted Power System (UPS)
• Compact dimensions
