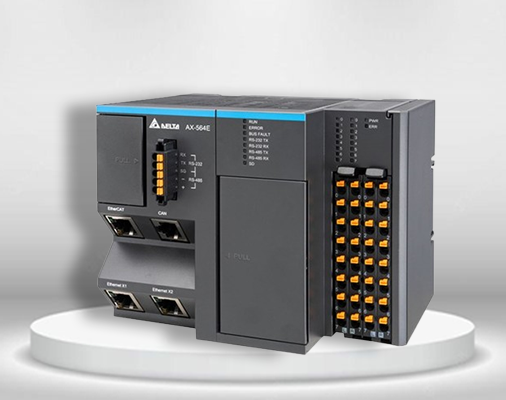

AX-5 Series Standard CPU
+
AX-5 Series Standard CPU
AX-5 Series uses a 4-core processor to balance motion control and communication performance, and supports industrial network communication protocols such as EtherNet/IP, PROFINET, EtherCAT, as well as third-party Wi-Fi and Bluetooth. The series makes it easy to integrate different production line information into production management systems. The system utilizes a high-speed 100 Mbps EtherCAT bus and Hot Connect to ensure high-precision synchronization control and real-time I/O updates. The independent I/O power supply simplifies wiring and delivers highly stable system operation and flexible I/O module expansion. The AX-5 Series is suitable for industries such as industrial robotics, woodworking, printing, packaging, electrical assembly and more.
Specifications
- Supports EtherCAT and DIADesigner-AX programming software and provides high-speed I/O bus and IoT applications
- Uses a 4-core processor to balance motion control and communication performance
- Offers EtherCAT motion control with various axes options
- The shortest execution time for basic instructions is 1 ns; Min. synchronization time can reach 32 axes / 1 ms
- Supports the new generation of AX-5 Series ultra-thin power supplies, digital I/O, analog I/O, and temperature expansion modules
- Adopts a 100 Mbps EtherCAT high-speed I/O system bus
- Built-in communication protocols include EtherCAT, CANopen, PROFINET, Modbus, EtherNet/IP, OPCUA server, MQTT, FTP, and more
- Provides USB Type-A interface for connecting third-party Wi-Fi or Bluetooth adapters
- Complies with IEC 61131-3 standards with SoftPLC and SoftMotion development environment

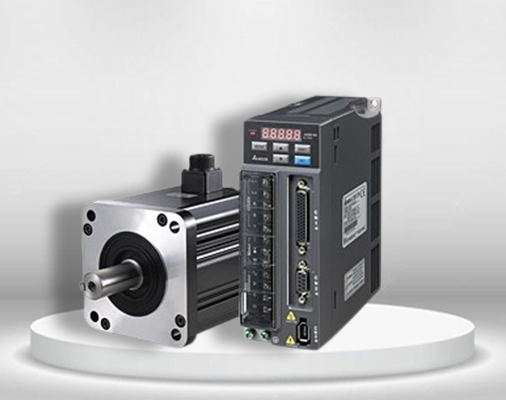

ASDA-B2 Series
+
ASDA-B2 Series
To meet the requirements of general-purpose machine tools and enhance the competitive advantage in the industrial automation market, Delta Electronics, Inc. is pleased to announce that the new high-performance and cost-effective ASDA-B2 series servo motors and drives has launched into the market.
Specifications
- High precision positioning control systems
- Low-speed stable rotation machinery
- General industrial automation requiring speed, torque, and position control
- Systems requiring analog and pulse control inputs
- Compact equipment with limited installation space
- High-resolution 17-bit encoder (160,000 p/rev) for precise positioning and smooth low-speed rotation
- Supports pulse input (up to 4Mbps) and analog voltage command control
- Built-in position, speed, and torque control modes
- Three auto notch filters for effective mechanical resonance suppression
- Motor sizing software for easy equipment estimation
- ASDA-Soft configuration software for fast performance tuning
- Digital keypad for easy parameter setting and monitoring
- Optional configurations available: brake, oil seal, etc.
- Reuse of ASDA series cables minimizes upgrade costs
- Separated control and main power circuits improve safety and maintenance
- Built-in regenerative resistor (400W and above) reduces wiring and cost
- Two analog input terminals (CN5) for monitoring servo motor status
